Functional Surface Specification
How to Specify Surface Roughness for CNC Machined Parts
Specify surface roughness only where it affects sealing, friction, wear, fatigue, coating, optical contact or appearance. Ra is an average roughness parameter, not a complete description of surface function or cosmetic quality. Measurement direction, cutoff and accessible length may also matter.
Provisional Machining Levels
| Surface condition | Screening value | Use |
|---|---|---|
| Standard as machined | Ra 3.2 μm as an illustrative drawing starting point; confirm material, process, measurement direction and cutoff | General noncritical surfaces |
| Improved machined | Ra 1.6 μm as an illustrative drawing starting point; confirm material, accessible measurement length, direction and cutoff | Selected functional or visible surfaces |
| Fine machined | Ra 0.8 μm only after part-specific machining and measurement review | Suitable accessible features after review |
| Ground/other finishing | Project-specific | Critical wear, seal or fit surfaces |
These values require Formexi engineering and quality confirmation for the actual material and geometry.

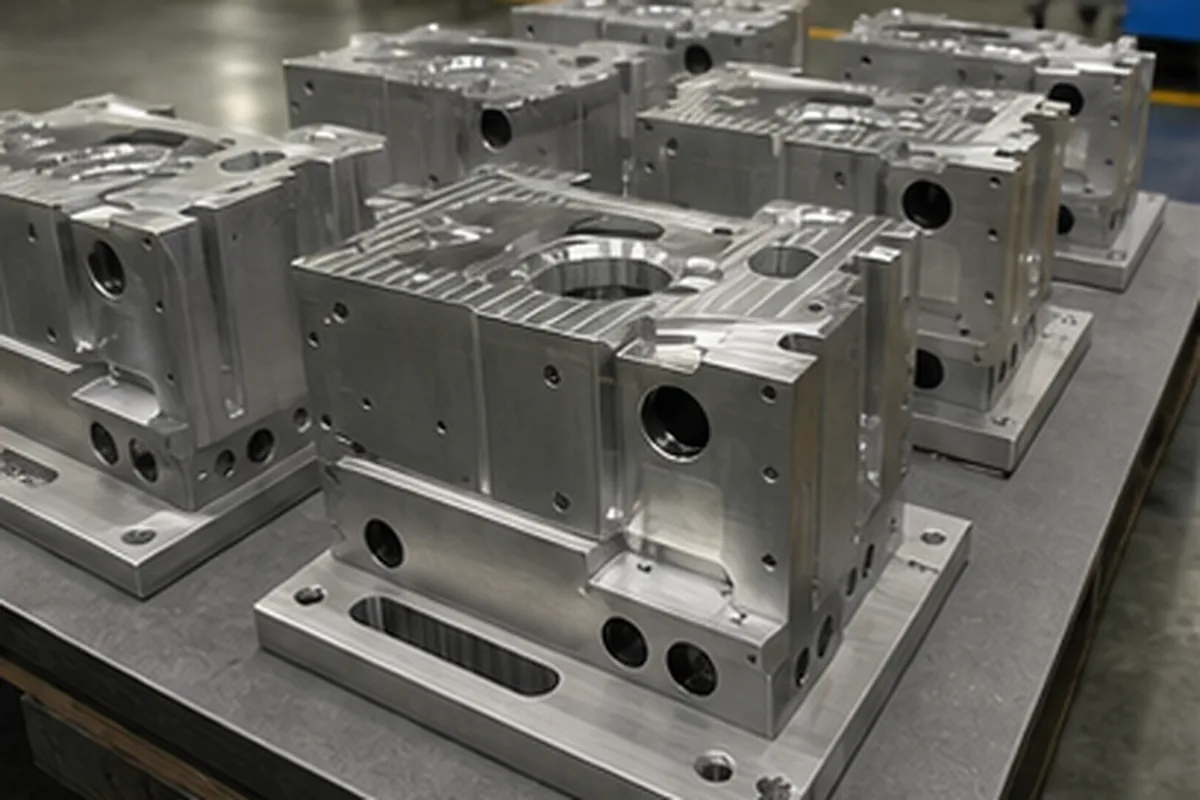

Roughness Is Not the Same as Appearance
Two surfaces can have a similar Ra but different lay, waviness, tool pattern and reflectivity. If appearance matters, define A/B/C surfaces, sample, lighting, texture and allowed defects separately.
Select Roughness by Function
| Function | Also review |
|---|---|
| Seal face | Flatness, lay, material and seal type |
| Bearing/slide | Lubrication, hardness, counterface and wear |
| Coating surface | Preparation, adhesion and coating thickness |
| Thermal interface | Flatness, contact pressure and interface material |
| Cosmetic surface | Tool marks, blasting, polishing and sample |
Measurement Requirements

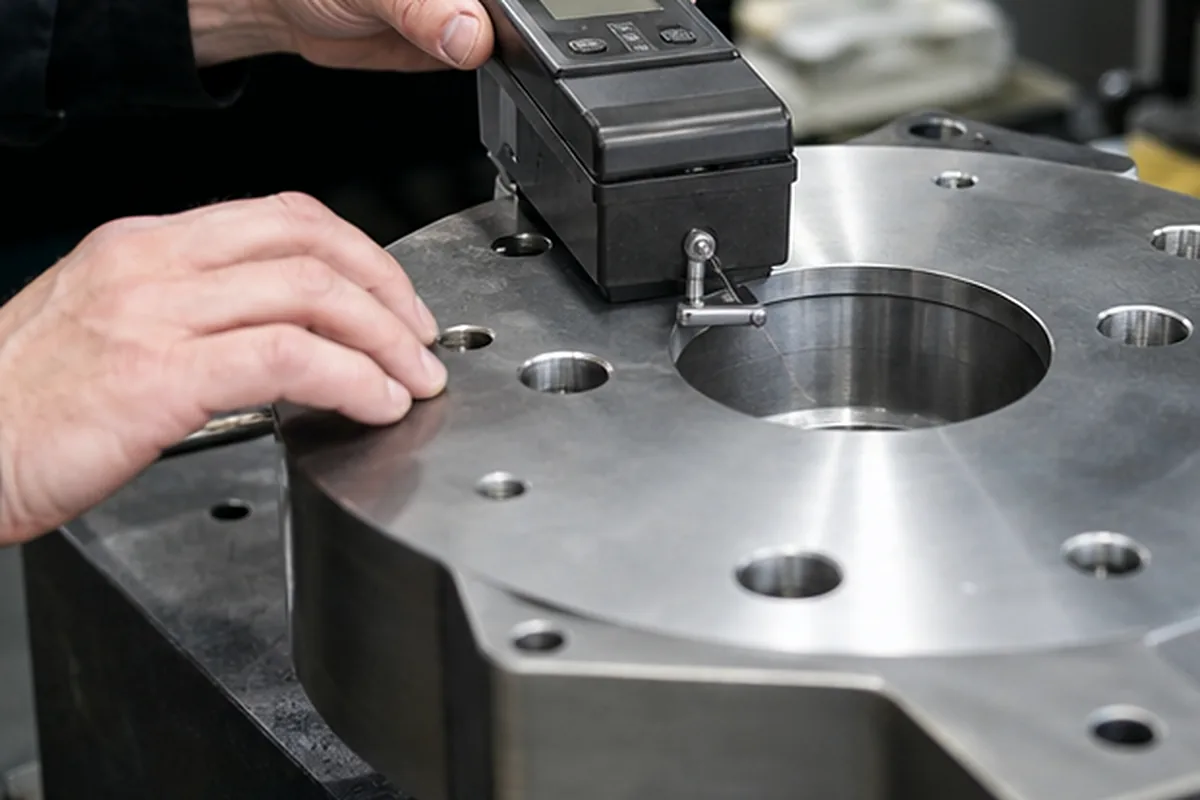

Identify the area, direction and standard where roughness is contractual. Small bores, interrupted faces and short lands may not provide enough travel for a standard stylus method. Agree on an alternative before production.
Cost Errors
Specifying fine roughness across an entire part, using Ra to control cosmetic gloss, and requesting a report after production can add cost without improving function.
