CNC Machining DFM and Engineering Support
Use CNC machining DFM review before quoting complex, thin-wall, deep-feature or tightly toleranced parts. The review compares the 2D drawing with the 3D model, then checks material, tool access, workholding, tolerance, finishing and measurement risk. It may recommend a lower-risk or lower-cost change, but no functional design change proceeds without written buyer approval.
What the Engineering Review Covers

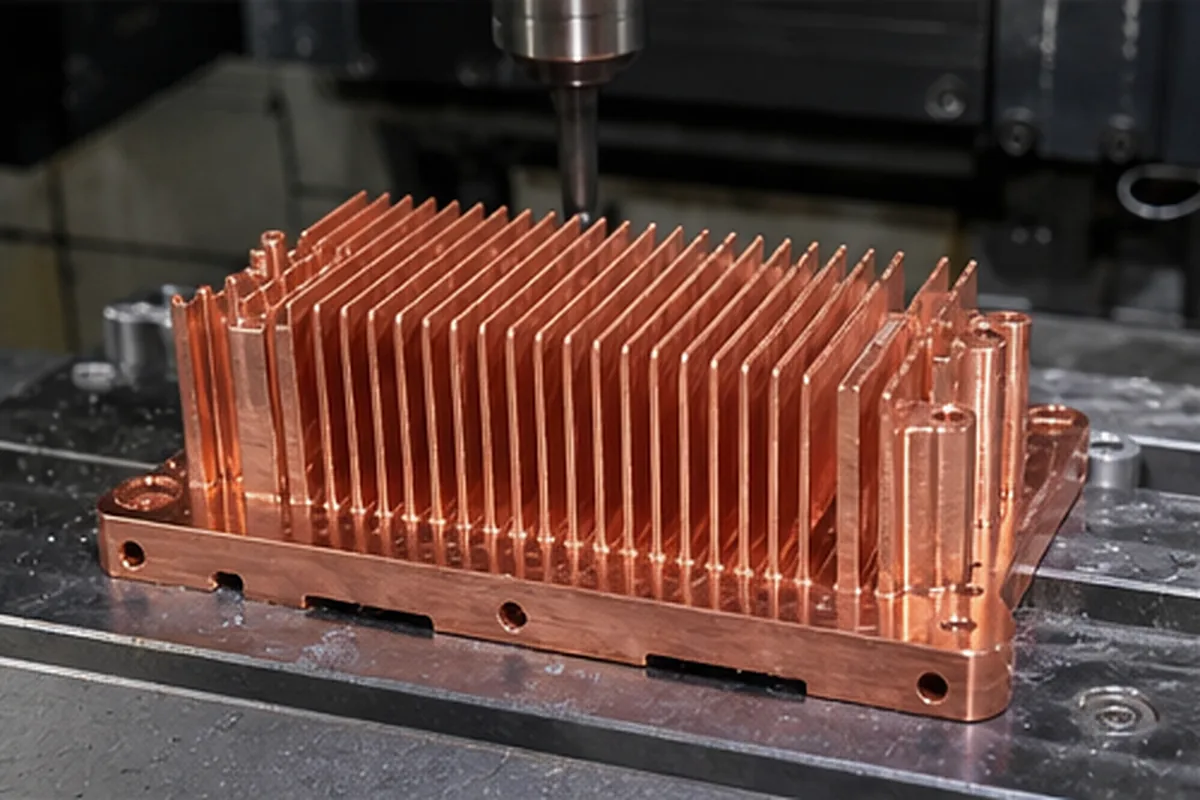

| Design item | Manufacturing risk | Typical review |
|---|---|---|
| Internal corner radius | Tool cannot create a sharp internal corner | Tool diameter, depth and accessible radius |
| Thin walls | Deflection, vibration and distortion | Material, wall height, support and cutting sequence |
| Deep pockets and holes | Tool deflection, chip evacuation and poor finish | Depth ratio, access, tool length and alternative geometry |
| Tight tolerances | Extra setups, inspection and scrap risk | Functional need, datum, process and measurement method |
| Surface treatment | Dimensional buildup, masking and color variation | Coating allowance, critical faces and batch control |
| 2D/3D conflict | Parts may meet one file and fail the other | Production stops until the controlling requirement is confirmed |
How DFM Can Reduce Cost
Cost is usually changed by setup count, tool reach, material removal, tolerance distribution, custom fixtures, deburring, finishing and inspection coverage. An engineer may propose a larger internal radius, a more stable wall, a standard thread, a less restrictive nonfunctional tolerance or an alternative process. The customer decides whether a change is acceptable.
What You Receive
- Questions about missing or conflicting requirements
- Marked screenshots, annotated drawings or written recommendations where useful
- Alternative material, process, tolerance or finish suggestions when relevant
- A revised quotation if an approved change affects price or lead time
Basic manufacturability feedback is included during quotation. Detailed product engineering or CAD modification is quoted separately when available.
Engineering Boundaries
Our DFM review addresses manufacturing risk, but it does not transfer product-function, regulatory or safety approval from the buyer’s design authority. Parts with very tight requirements, thin walls, deep features, unstable plastics or regulated end uses receive a project-specific review so assumptions and approval points are resolved before production.

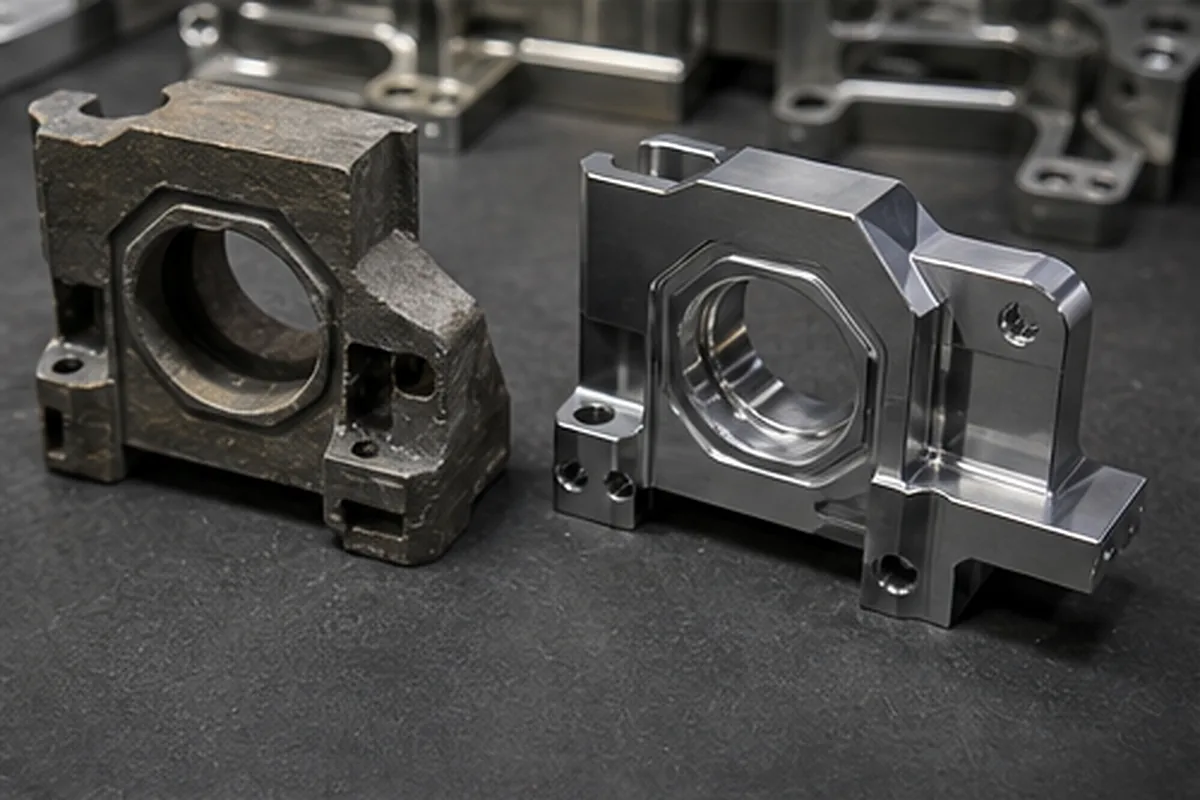

What Our Project Review Resolves Before Quoting CNC Machining DFM and Engineering Support
When buyers can overpay or lose datum consistency when a process is chosen from a machine label instead of the part geometry, unnecessary setups or an unjustified high-end route can add cost without improving the functional result. For CNC Machining DFM and Engineering Support, our engineering and quotation review compares rotational versus prismatic geometry, feature access, datum relationships, workholding, batch size and measurement access before selecting milling, turning or a combined route. This helps reduce rework, approval delays and avoidable purchasing cost without turning a screening assumption into a capability guarantee.
For the CNC Machining DFM and Engineering Support buying decision, we confirm the route only after reviewing the 2D drawing and 3D model, overall size, material state, critical datums and tolerances, quantity, finish and inspection documents. Any unresolved item is listed as an RFQ clarification so the buyer can compare scope, evidence, price and lead time on the same basis.
Confirm the Process for CNC Machining DFM and Engineering Support
For CNC Machining DFM and Engineering Support, submit the 2D drawing and 3D model with matching revision, exact material and condition, quantity and repeat demand. Identify relevant datums, critical tolerances, GD&T, threads, difficult-access geometry, thin walls, roughness, heat treatment and finish requirements.
The route for CNC Machining DFM and Engineering Support may require multiple setups, dedicated workholding, intermediate inspection or a justified secondary process. Select grinding, EDM, stress relief or post-finish verification only when the geometry and function require it; machine axis count alone does not establish final capability.
Get Feedback Before Production
Upload the 3D model and a 2D drawing showing critical tolerances, threads, surfaces and inspection requirements.
