Multi-Axis Manufacturing

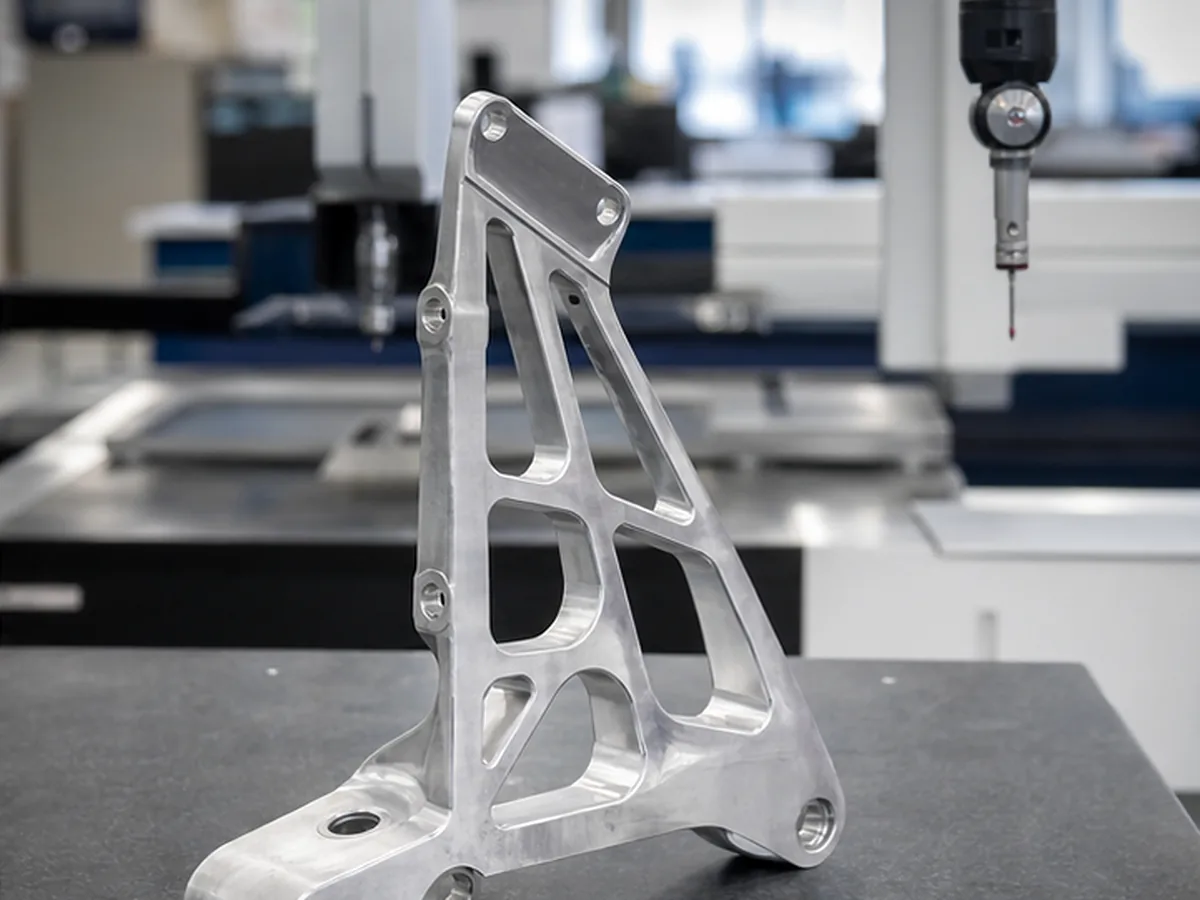

5-Axis CNC Machining for Complex Multi-Face Parts
Formexi evaluates 3+2 and simultaneous 5-axis machining for parts with angled features, compound contours or feature relationships that benefit from fewer setups. Final feasibility, machine source, work envelope and achievable tolerance are confirmed from the actual geometry before quotation.
When 5-Axis Machining Is Useful
- Multiple angled faces or holes in different orientations
- Compound or continuously changing surfaces
- Feature relationships that are difficult to preserve through repeated clamping
- Shorter tools and improved access for selected deep or inclined features
- Complex parts where setup reduction offsets higher machine cost

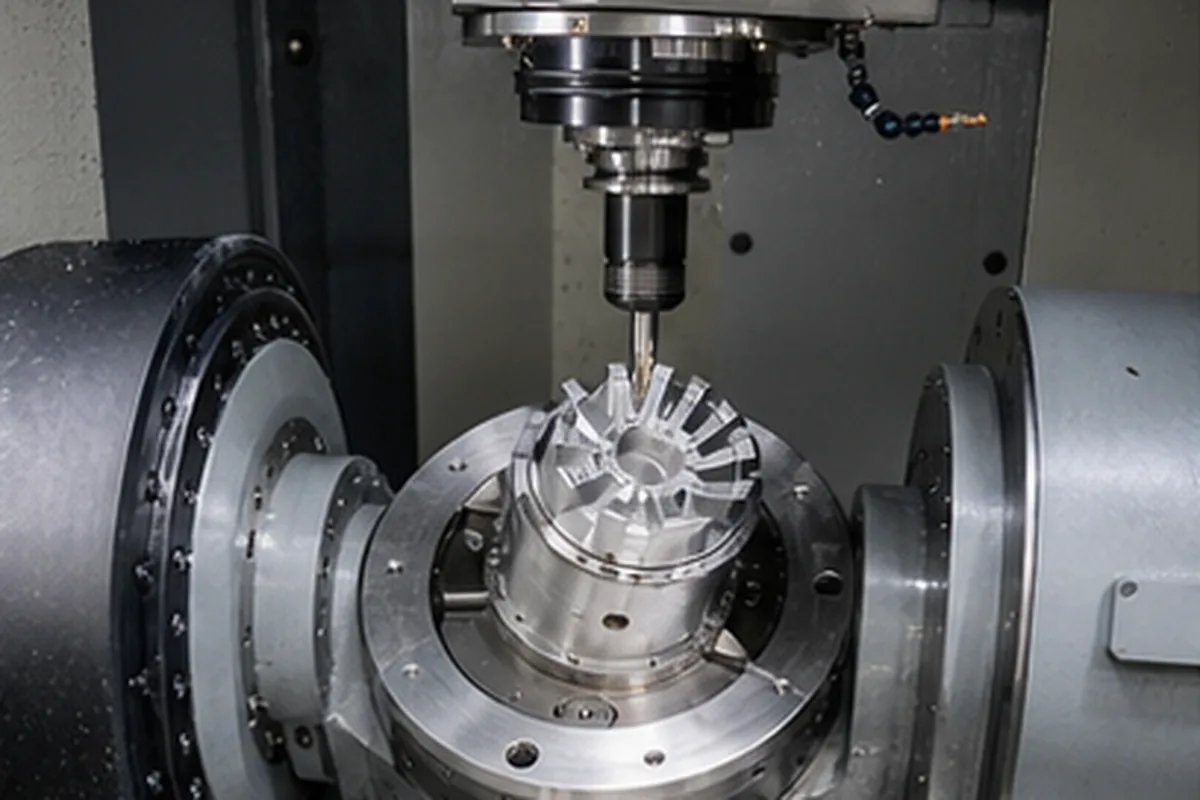

3+2 Versus Simultaneous 5-Axis
| Approach | Best suited to | Decision factor |
|---|---|---|
| 3+2 positioning | Multiple fixed-angle faces and holes | Machine positions the part, then cuts with rotary axes held |
| Simultaneous 5-axis | Compound contours and changing tool orientation | All axes coordinate during cutting |
Simultaneous motion should be selected only when the geometry or surface result requires it.
Engineering Risks We Review
Tool reach, collision clearance, workholding, machine kinematics, post-processing, datum strategy, surface blending and inspection access all affect the result. Thin walls and heavy stock removal may still distort even when the part is completed in one setup.
Tolerance and Surface Claims
Fewer setups may improve some feature relationships, but five axes do not automatically guarantee tighter tolerances. Qualified dimensions down to approximately ±0.01 mm require review of size, material, thermal stability, datum and measurement uncertainty.

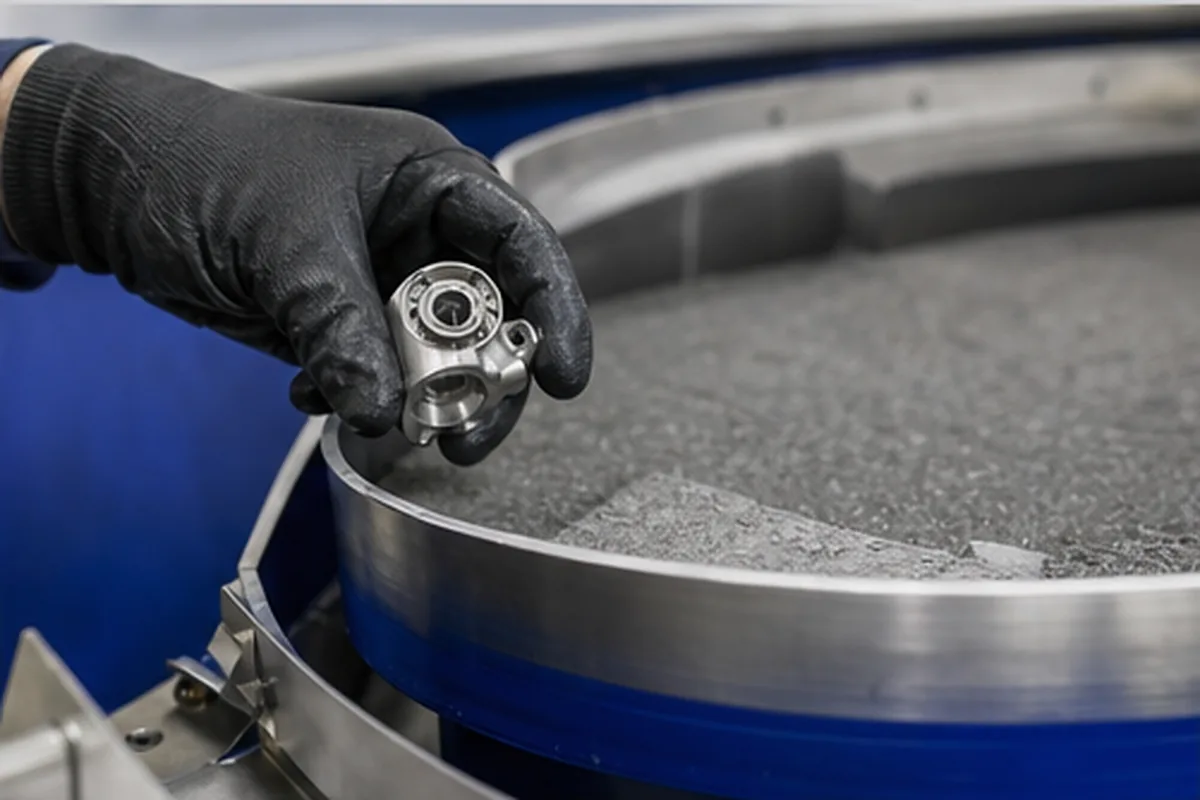

Capability Verification
Formexi’s equipment audit has not yet established public machine models, quantities, travel or whether every five-axis project is completed in-house. These facts must be confirmed in the quotation and later added to the equipment page with evidence.
Confirm the Process for 5-Axis CNC Machining for Complex Multi-Face Parts
For 5-Axis CNC Machining for Complex Multi-Face Parts, submit the 2D drawing and 3D model with matching revision, exact material and condition, quantity and repeat demand. Identify relevant datums, critical tolerances, GD&T, threads, difficult-access geometry, thin walls, roughness, heat treatment and finish requirements.
The route for 5-Axis CNC Machining for Complex Multi-Face Parts may require multiple setups, dedicated workholding, intermediate inspection or a justified secondary process. Select grinding, EDM, stress relief or post-finish verification only when the geometry and function require it; machine axis count alone does not establish final capability.
Does Your Part Actually Need Five Axes?
Send the model, drawing and functional dimensions. We will compare 3-axis, 3+2 and simultaneous strategies before recommending a process.
