Supported CAD File Formats for CNC Machining Quotes
STEP/STP is the preferred neutral 3D format for CNC quotation because it preserves solid geometry better than mesh formats. Include a PDF or DWG/DXF drawing for tolerances, threads, datums, surface finish and notes. STL or image files alone are usually insufficient for controlled precision parts.
Planned Accepted 3D Formats
| Format | Recommended use | Boundary |
|---|---|---|
| STEP / STP | Preferred neutral solid exchange | Check units and geometry after export |
| Parasolid X_T | High-quality neutral solid exchange | Software compatibility must be confirmed |
| IGES / IGS | Legacy surface/geometry exchange | May require surface repair |
| SLDPRT, IPT, PRT, SAT | Supported native/other solid formats | Version compatibility varies |
| STL | Mesh reference or printed geometry | Not preferred for precision CNC definition |
2D and Reference Formats
- PDF for controlled drawing review
- DWG/DXF for 2D geometry and drawings
- JPG/PNG for annotated appearance references only
- ZIP/RAR for packaging multiple project files, subject to upload policy

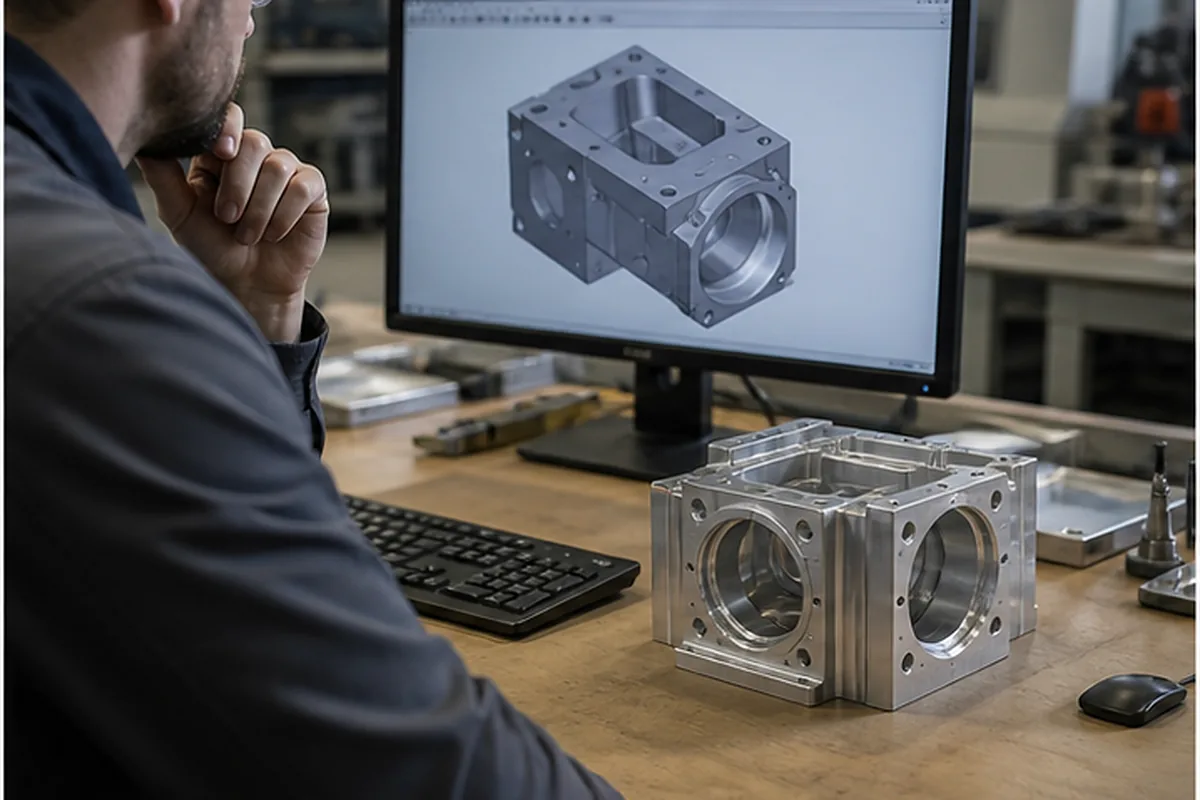

Why a 3D Model Does Not Replace the Drawing
The model rarely communicates tolerance, datum, thread class, roughness, heat treatment, coating thickness, inspection or packaging. Unless model-based definition is explicitly agreed, provide a controlled 2D drawing.
Export Checklist
- Correct units and scale
- Single watertight solid where intended
- No suppressed or reference-only geometry
- Correct part and drawing revision
- Threads represented and called out consistently
- Assembly files include all required components
File Size and Upload Boundary
Actual per-file limit, total upload limit and supported software versions must be confirmed when the website form is implemented. Until then, the page should not advertise untested upload capacity.
From Supported CAD File Formats for CNC Machining Quotes Requirements to a Controlled Manufacturing Plan

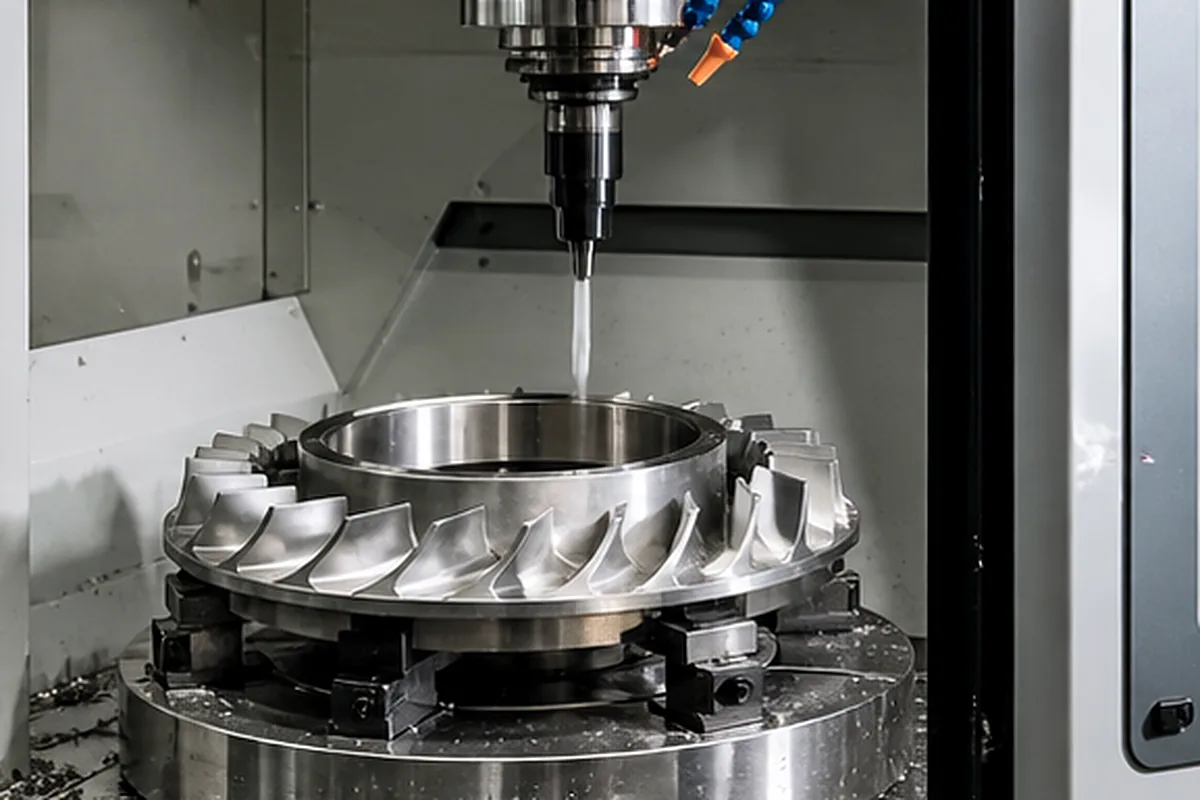

A useful supplier solution for Supported CAD File Formats for CNC Machining Quotes starts when buyers can overpay or lose datum consistency when a process is chosen from a machine label instead of the part geometry. Because unnecessary setups or an unjustified high-end route can add cost without improving the functional result, our project review compares rotational versus prismatic geometry, feature access, datum relationships, workholding, batch size and measurement access before selecting milling, turning or a combined route. That approach helps the buyer avoid paying for the wrong process and lowers the chance of discovering a critical issue after machining or finishing.
For the Supported CAD File Formats for CNC Machining Quotes buying decision, our review needs the 2D drawing and 3D model, overall size, material state, critical datums and tolerances, quantity, finish and inspection documents. We record assumptions, approval points and evidence requirements before the quotation becomes the production baseline.
