CNC Chatter Marks and Poor Surface Finish: Causes and Solutions
CNC chatter marks come from unstable vibration between the tool, part, fixture and machine. Other poor surface finishes may come from feed marks, built-up edge, tool wear, chip recutting or material tearing. Identify the mark pattern and confirm measured roughness before changing parameters; appearance alone does not reveal one universal cause.
Distinguish Chatter From Other Surface Marks
| Surface symptom | Possible mechanism | Check |
|---|---|---|
| Regular wave pattern with noise | Regenerative chatter | Spindle speed, engagement and system stiffness |
| Uniform feed lines | Normal toolpath/feed signature | Specified Ra and functional direction |
| Smeared or torn surface | Built-up edge or ductile material behavior | Tool edge, speed and lubrication |
| Random scratches | Chip recutting or handling | Chip evacuation and downstream contact |
| Step between toolpaths/setups | Alignment, runout or blending error | Setup and tool runout |
| Finish worsens through batch | Tool wear | Time-ordered samples and tool-life record |
System Stiffness Is Usually Central to Chatter
- Excessive tool overhang or small tool diameter
- Thin walls or unsupported workpiece regions
- Flexible fixture, weak clamping or poor contact
- Worn spindle, holder contamination or tool runout
- Cutting engagement that excites a structural frequency
- Deep cavities forcing an unfavorable approach
Corrective Actions Must Match the Cause
Possible actions include shortening the tool, changing tool geometry, increasing part support, revising radial/axial engagement, moving spindle speed away from an unstable zone, improving chip evacuation or leaving a controlled finish allowance. Reducing feed indiscriminately can worsen rubbing or increase cycle time without removing vibration.
Define Surface Acceptance Properly
State the required roughness parameter and limit, measurement direction, cutoff/filter where relevant, and the local surface zone. Cosmetic appearance needs separate lighting, viewing distance, sample or defect criteria. A surface can meet Ra and still show unacceptable scratches, or look uniform while failing a sealing requirement.
Can the Surface Be Reworked?
A new finishing pass may be possible if stock remains and geometry is accessible. Polishing or blasting can hide visual marks but may change size, flatness, edge definition or texture; it must not be used to conceal a dimensional failure. Finished or coated parts require a process-specific review before rework.
Evidence Buyers Should Request

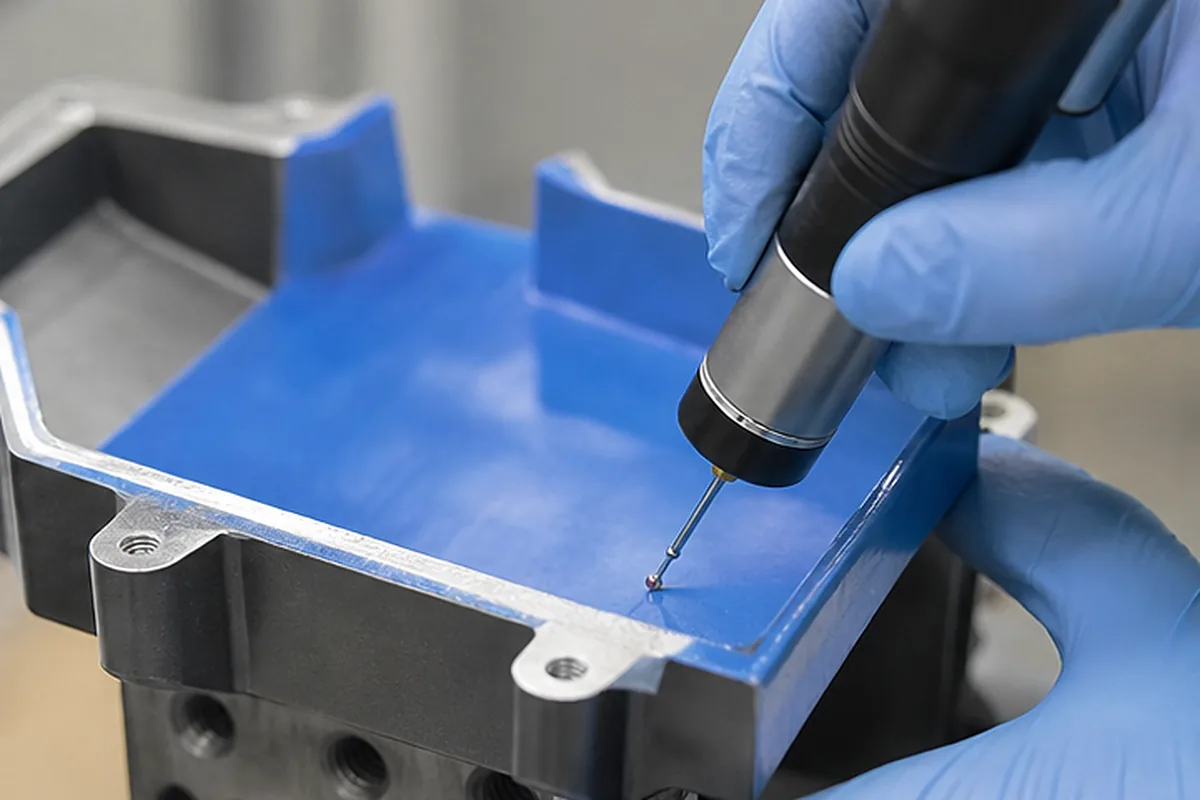

- Close-up images with orientation and scale
- Measured roughness values and method
- Feature location and toolpath direction
- Tool condition, holder and overhang
- First/middle/last part comparison
- Dimensional check before and after any rework
