Thread Design
How to Specify Threads for CNC Machined Parts
Specify thread standard, nominal size, pitch, class, handedness, depth and inspection method. Thread depth should be based on load, material and engagement rather than filling the entire hole. Extra depth increases tool risk without always increasing joint strength.
Information Every Thread Callout Needs
- Metric, UNC, UNF, BSP, BSPT, NPT or other standard
- Nominal size and pitch/TPI
- Internal or external and right/left hand
- Tolerance class or fit
- Through, blind and effective engagement depth
- Coating condition and inspection gauge
Blind-Hole Design
Leave room below the full thread for tap lead, chips and drill point. Do not dimension full thread to the exact bottom unless a special process is justified. Show usable engagement separately from total hole depth.
Material and Load
| Condition | Review |
|---|---|
| Soft aluminum | Engagement, repeated assembly and possible insert |
| Plastic | Creep, pullout, self-tapping or metal insert |
| Hard steel | Tool wear, pre/post heat treatment and grinding/EDM alternatives |
| Tapered pipe thread | Sealant, gauge plane, orientation and pressure test |
Coating and Finishing
Anodizing, plating and powder coating change thread fit. Define whether threads are masked, processed and chased, and whether gauges apply before or after finish.
Inspection
Functional plug/ring gauges verify a specified thread fit but do not measure every geometric detail. Critical aerospace, medical, pressure or custom threads may require additional inspection and approved standards.
How We Reduce Sourcing and Manufacturing Risk for How to Specify Threads for CNC Machined Parts
The purchasing issue behind How to Specify Threads for CNC Machined Parts is that threads, gears or splines can fail functional gauges even when a nominal CAD shape looks correct; as a result, wrong class, usable depth, burr control or coating allowance can stop assembly and cause rework. Our response is to confirms the governing standard, class, datum, tool runout, relief, gauge method and pre- versus post-finish acceptance condition. The objective is to protect assembly and validation schedules while reducing preventable scrap, rework and supplier-change risk.
For the How to Specify Threads for CNC Machined Parts buying decision, before we confirm price or delivery, the buyer should send the full callout, mating-part requirement, usable depth, gauge or inspection method, heat treatment, coating and quantity. If a requirement cannot yet be verified, we keep it as an open condition instead of presenting it as a guaranteed result.
Confirm the Process for Specify Threads for CNC Machined Parts
For Specify Threads for CNC Machined Parts, submit the 2D drawing and 3D model with matching revision, exact material and condition, quantity and repeat demand. Identify relevant datums, critical tolerances, GD&T, threads, difficult-access geometry, thin walls, roughness, heat treatment and finish requirements.

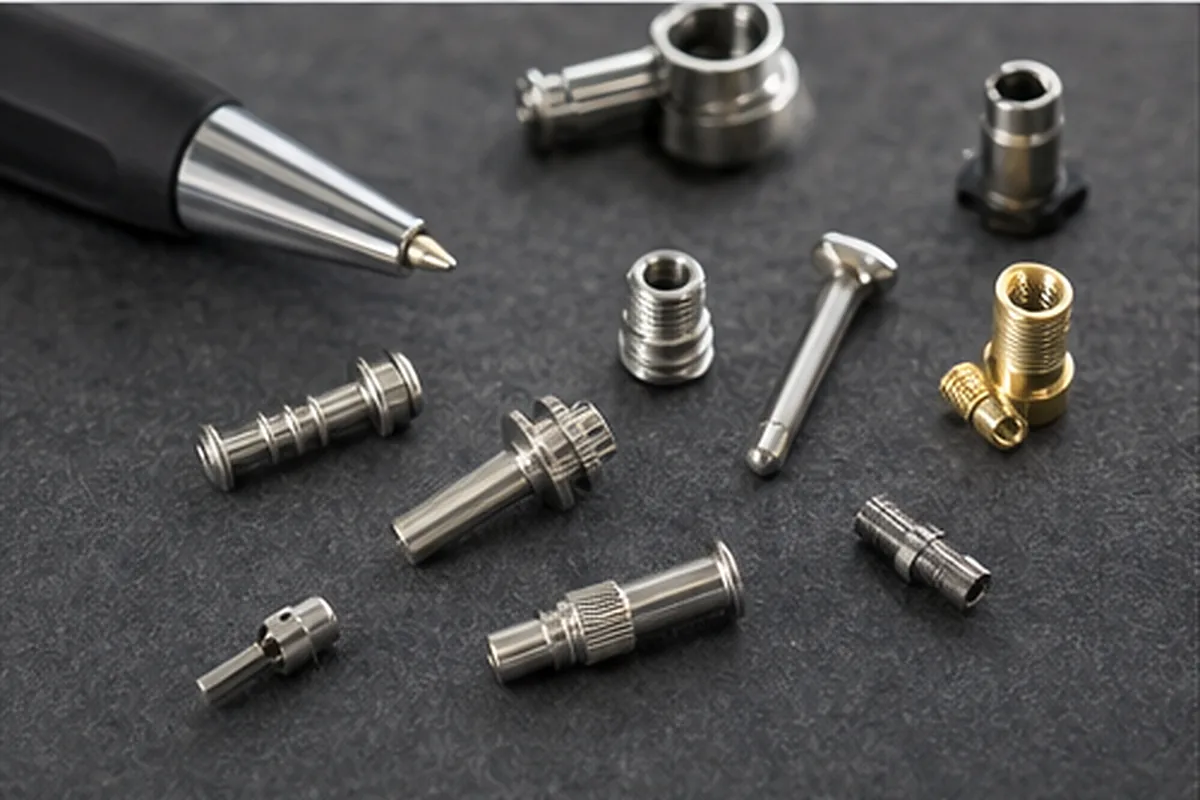

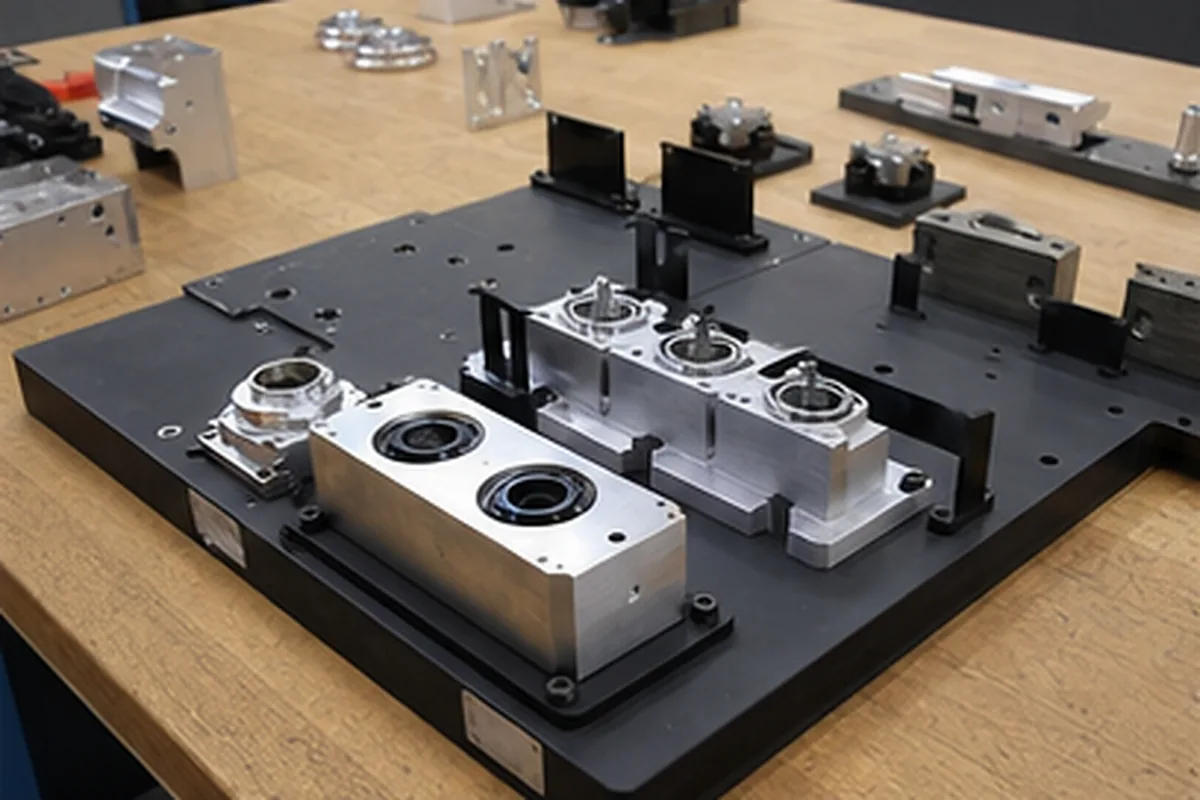

The route for Specify Threads for CNC Machined Parts may require multiple setups, dedicated workholding, intermediate inspection or a justified secondary process. Select grinding, EDM, stress relief or post-finish verification only when the geometry and function require it; machine axis count alone does not establish final capability.
