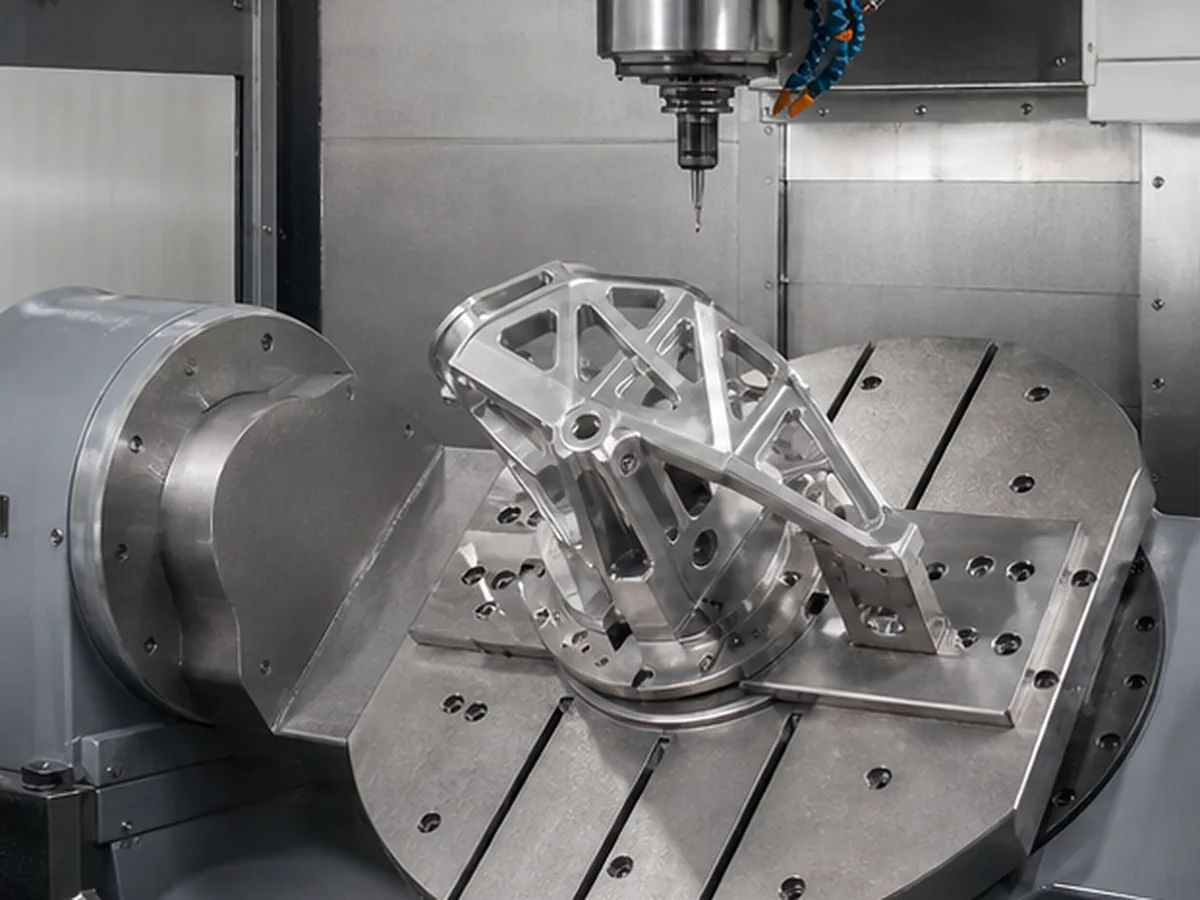

CNC Machining Drawing Review Checklist
Before releasing a CNC drawing, confirm revision, units, material, datums, functional tolerances, threads, finish, inspection and packaging. A clear drawing reduces quotation assumptions and prevents a part from matching the model while failing the intended assembly.
1. Document Control
- Part number, title and revision are visible.
- 3D model and 2D drawing use the same revision.
- Units and scale are stated.
- Conflicting legacy notes are removed.
- Document priority is defined if files conflict.
2. Material and Condition
- Exact material grade and standard are stated.
- Temper, hardness or heat-treated condition is stated.
- Stock/product form is defined where important.
- MTC, traceability or restricted-substance needs are stated.
- Substitution requires written approval.
3. Dimensions and GD&T
- Functional datums reflect assembly.
- General tolerance is stated.
- Tight tolerances appear only on functional features.
- Duplicate or conflicting dimensions are removed.
- Measurement state/temperature is defined for flexible parts.
- GD&T controls can be manufactured and measured.
4. Holes, Threads and Edges
- Hole depth and usable depth are separated.
- Thread standard, class and effective depth are stated.
- Blind holes include tool/chip clearance.
- Critical burr and edge requirements are shown.
- Internal corners have practical radii or reliefs.
5. Surface and Finishing
- Functional roughness is applied only where needed.
- A/B/C cosmetic surfaces are identified.
- Finish type, color, thickness and standard are stated.
- Masking zones and finished dimensions are clear.
- Approved sample and allowed variation are defined.
6. Inspection and Delivery
- Critical dimensions and sampling/full-inspection scope are identified.
- CMM, FAI, MTC, CoC or other reports are requested before production.
- Cleaning, labeling and packaging requirements are stated.
- Mating parts or functional test information is supplied where useful.
Our Review Method for CNC Machining Drawing Review Checklist Requirements
The purchasing issue behind CNC Machining Drawing Review Checklist is that buyers can overpay or lose datum consistency when a process is chosen from a machine label instead of the part geometry; as a result, unnecessary setups or an unjustified high-end route can add cost without improving the functional result. Our response is to compares rotational versus prismatic geometry, feature access, datum relationships, workholding, batch size and measurement access before selecting milling, turning or a combined route. The objective is to protect assembly and validation schedules while reducing preventable scrap, rework and supplier-change risk.
For the CNC Machining Drawing Review Checklist buying decision, before we confirm price or delivery, the buyer should send the 2D drawing and 3D model, overall size, material state, critical datums and tolerances, quantity, finish and inspection documents. If a requirement cannot yet be verified, we keep it as an open condition instead of presenting it as a guaranteed result.
Confirm the Process for CNC Machining Drawing Review Checklist
For CNC Machining Drawing Review Checklist, submit the 2D drawing and 3D model with matching revision, exact material and condition, quantity and repeat demand. Identify relevant datums, critical tolerances, GD&T, threads, difficult-access geometry, thin walls, roughness, heat treatment and finish requirements.
The route for CNC Machining Drawing Review Checklist may require multiple setups, dedicated workholding, intermediate inspection or a justified secondary process. Select grinding, EDM, stress relief or post-finish verification only when the geometry and function require it; machine axis count alone does not establish final capability.
